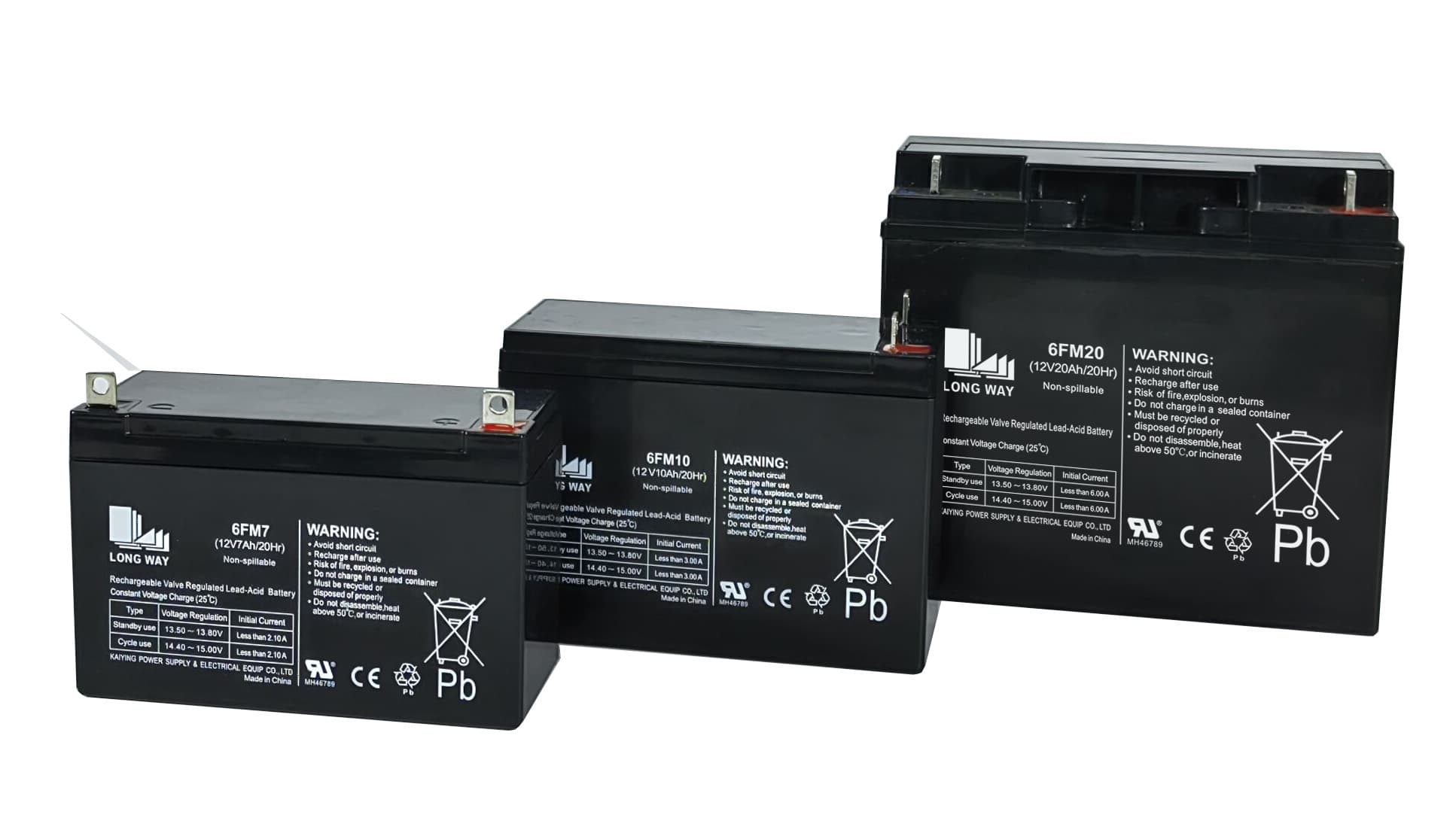

hhuicellbattery jump-starter battery used for emergency start power. It adopts the design of thin and multi plate, and the special lead paste formula can improve the instantaneous high current discharge (100-1000A) performance of the battery, which can meet the requirements of vehicle starting in emergency situations. Mainly used for Jump-starter, lawn mower, car backup ignition etc. The products obtained UL, CE, RoHS certifications and can be shipped by sea or air. |
General Features
● High reliability, safe without leakage. Can be operated in any orientation.
● Excellent start ability at low temperature. High current discharge is tested at -18°C and -5°C can be discharged continuously for more than 30 seconds
● Good cycle life of high current discharge. After continuous 200 cycles of high current discharge, almost no attenuation of discharge time.
● Excellent storage performance. After being fully charged and stored for 6 months without affecting the vehicle's ability to start in case of emergency.
Technical Specifications
| Battery Model | Nominal Voltage V |
Nominal Capacity Ah |
Length | Width | Height | Total Height | Weight | Terminal | ||||||
| mm | in | mm | in | mm | in | mm | in | kg | Ibs | Type | Position | |||
| 6FM7L | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 96 | 3.78 | 108 | 4.25 | 2.27 | 5.00 | F6 | D |
| 6FM9L | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 110.5 | 4.35 | 123 | 4.84 | 2.75 | 6.06 | F6 | D |
| 6FM12L | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 105 | 4.13 | 3.45 | 7.61 | F6 | D |
| 6FM12H | 12 | 13 | 151 | 5.94 | 98 | 3.86 | 98 | 3.86 | 120 | 4.72 | 3.78 | 8.33 | F7 | F |
| 6FM14H | 12 | 14 | 151 | 5.94 | 98 | 3.86 | 98 | 3.86 | 120 | 4.72 | 3.90 | 8.60 | F7 | F |
| 6FM7 | 12 | 7 | 151 | 5.94 | 65.5 | 2.58 | 94 | 3.70 | 106 | 4.17 | 2.28 | 5.03 | F7 | F |
| 6FM8.5 | 12 | 8.5 | 151 | 5.94 | 65.5 | 2.58 | 94 | 3.70 | 106 | 4.17 | 2.55 | 5.62 | F7 | F |
| 6FM12 | 12 | 12.5 | 151 | 5.94 | 98 | 3.86 | 93 | 3.66 | 105 | 4.13 | 3.45 | 7.61 | F7 | F |
| 6FM18 | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 166 | 6.54 | 166 | 6.54 | 5.74 | 12.65 | F5 | D |
| 6FM20 | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 166 | 6.54 | 166 | 6.54 | 5.98 | 13.18 | F5 | D |
| 6FM22 | 12 | 22 | 181 | 7.13 | 77 | 3.03 | 166 | 6.54 | 166 | 6.54 | 6.15 | 13.56 | F5 | D |
